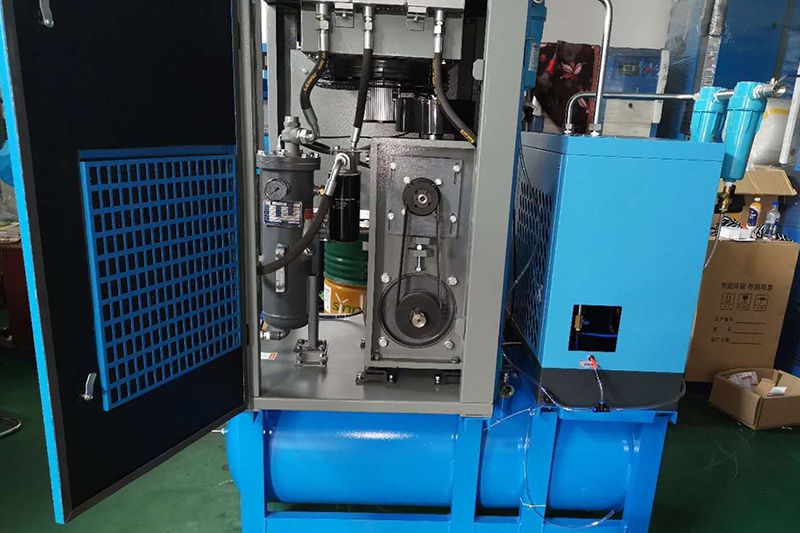

    LGSD series tank mounted screw air compressor is configured with air filter and refrigerant dryer that are European standards TUV and CE certified, to ensure high quality compressed air. The quality of clean air reaches 0.001ppm.
    • Power 5.5-22kW
    • Working pressure 8-15bar
    • Free air delivery 0.53-3.51m³/min
    • Features
    • Advantages
    • Specifications
    Features

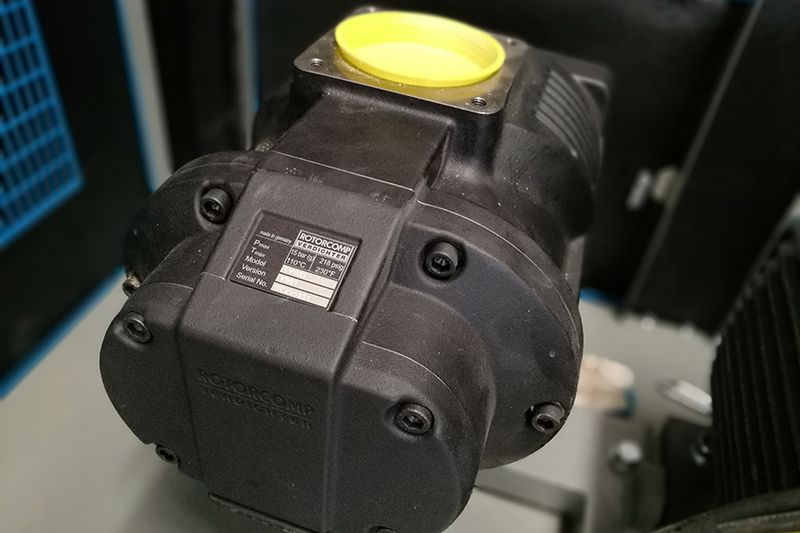

    • New ROLLING PROFILE®, ultimate efficiency and reduced noise;
    • Long life cycle due to generous bearing dimensions and wear-free ROLLING PROFILE®;
    • Wide working pressure range, from 5 to 15 bar;
    • High quality manufacturing and assembling –"Made in Germany";
    • 304L stainless steel piping system greatly reduces pressure losses;
    • Reduced number of components and connections leads to minimal failure and leakage;
    • Integrated design contributes in less space-consuming, easy installation and superior look;

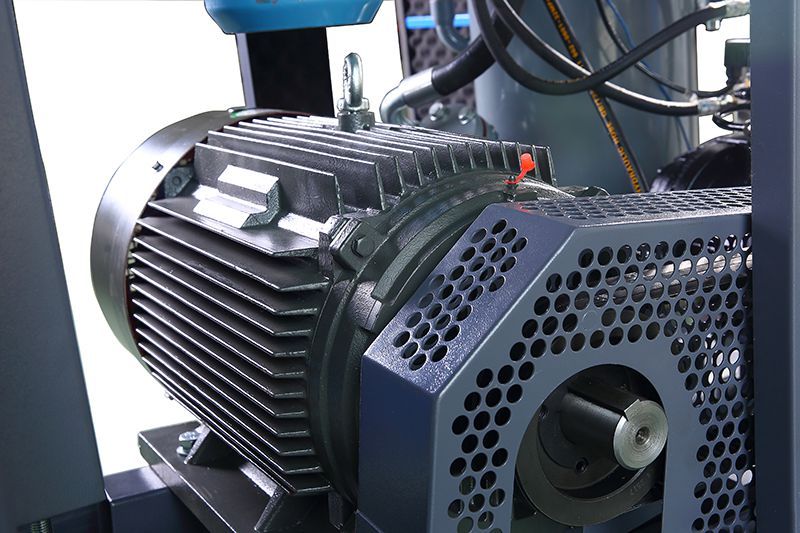

    • Able to work with all types of motors;
    • 2 years warranty for compressor, 5 years warranty for air end;
    Advantages
    Technical Specifications
    Model Capacity(m3/min)* Power(kW) Inlet/Outlet Noise Level Dimension Weight Tank(L)
    8bar 10bar 13bar 15bar Motor Motor(Fan) dB(A)** L×W×H in mm kg 300
    LGSD-5.5
    		 0.87 0.75 0.61 0.53 5.5 0.09 G1 69 900×750×900 245 300
    LGSD-7.5
    		 1.2 1.04 0.9 0.8 7.5 0.09 G1 69 900×750×900 250 300
    LGSD-11
    		 1.79 1.58 1.32 1.17 11 0.18 G1 70 950×800×1290 370 300
    LGSD-15
    		 2.4 2.15 1.84 1.66 15 0.18 G1 70 950×800×1290 480 300
    LGSD-18.5
    		 3 2.9 2.52 2.02 18.5 0.37 G1 71 1250×960×1300 730 300
    LGSD-22
    		 3.51 3.16 2.71 2.45 22 0.37 G1 71 1250×960×1300 750 300

    Note: OEM&ODM service, 220-450V/3/50-60Hz single& dual voltage customization is accepted.
